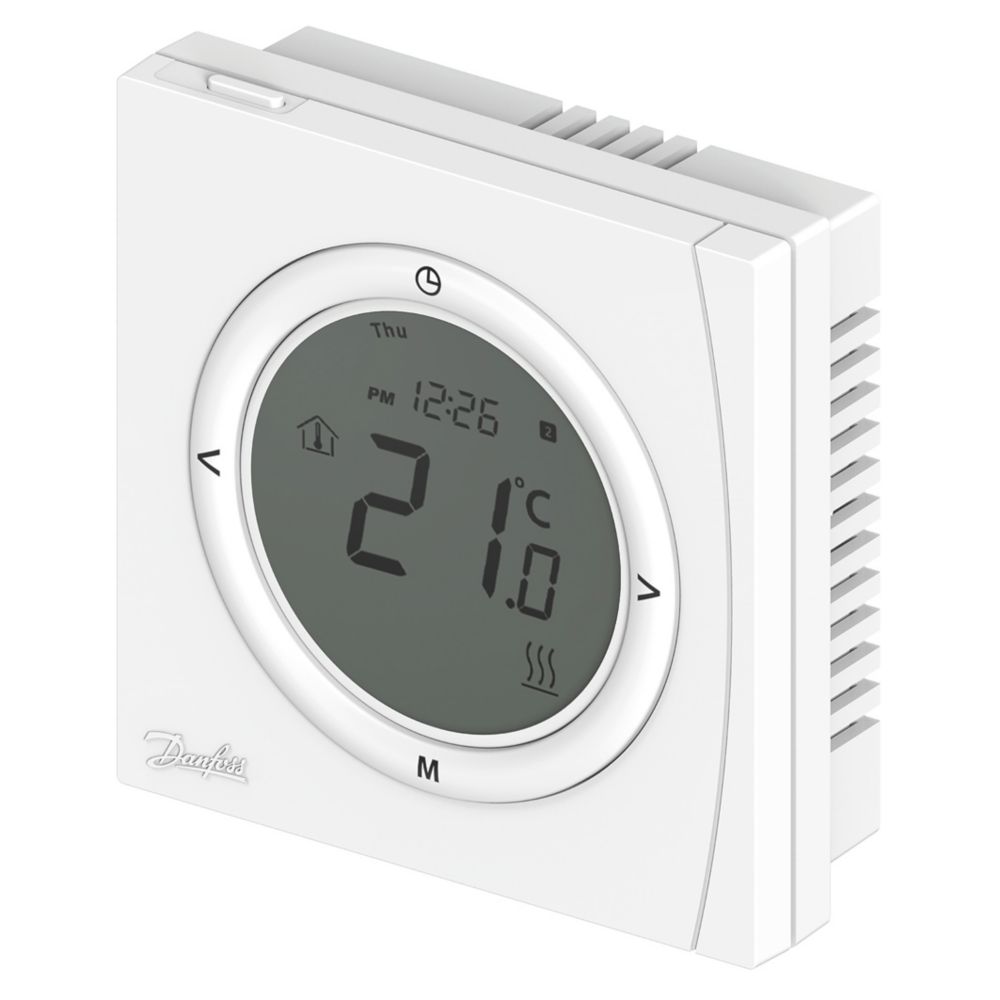

Danfoss TP5001 1-Channel Wired Programmable Room Thermostat
- 5-35°C Temperature Range
- Suitable for Combi Boilers
- 2-Wire Installation
- Mains-Powered with Battery Backup
- Backlit LCD Display
- 5/2 Day or 24 Hour Programmable
- 2 Pre-Set Programmes
- 2 On / Off Periods per Day
- Without Boost Facility
€132.18
Instruction Manual
Adds full heating schedule control to features offered by RET variants. User can set 2 heating periods with either 5/2 day or 24-hour scheduling, ensuring heating is either off or at reduced temperature when away from home or asleep.
| Brand | Danfoss |
| Central Heating Control Type | Thermostats |
| Colour | White |
| Communication Protocol | On/Off |
| Compatible Boiler Type | Combi Boilers |
| Control Operation | Digital |
| Current Type | AC |
| Display Type | Backlit LCD Display |
| ERP Control Class | Class IV |
| Fixings Supplied | Brackets Supplied |
| Frost Protection | Frost Protection Setting |
| Green star | Saving energy at home |
| Green star Claim | A room thermostat controls the heating in your home. If the room’s temperature drops below your chosen temperature, the thermostat will switch on. Once the room has reached the chosen temperature, the thermostat will turn the heating off, preventing overheating and reducing energy consumption. This can help reduce your home’s energy consumption. |
| Heating System Mode | Heating |
| Hertz (Hz) | 50/60 Hz |
| Holiday Mode | Holiday Mode |
| IP Rating | IP30 |
| Insulation Type | Non-Insulated |
| Label Info 4: Supplementary Label Info | None |
| Label Info 5: Hazardous Chemical Content | None |
| Manufacturer Guarantee | 5 Year Manufacturer’s Guarantee (T&Cs Apply) |
| Max. Load (Inductive) | 3 A |
| Max. Load (Resistive) | 1 A |
| Model Name | TP5001 |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Consumption | 230 W |
| Product Depth | 30 mm |
| Product Height | 86 mm |
| Product Type | Programmable Room Thermostat |
| Product Width | 86 mm |
| Programme Facility | 5/2 Day or 24 Hour Programmable |
| Receiver Included | Receiver Not Included |
| Sensor Type | Electronic Sensor |
| Smart Compatibility | Not Smart |
| Switching Differential | 0,2 K |
| Switching Type | SPDT |
| Temperature Range | 5-35 °C |
| Terminal Capacity | Terminals accept up to 2.5mm² cable |
| Thermostat Mount Type | Wall-Mounted |
| Thermostat Power Source | Mains-Powered with Battery Backup |
| Thermostat Voltage | 230 V |
| Time Change | Automatic BST/GMT Time Change |
| Wireless/Wired | Wired |
| Wiring Installation | 2-Wire Installation |
| z1 – UK Manufacturer Name | Danfoss Ltd |
| z2 – UK Manufacturer Postal Address | 22 Wycombe End, HP9 1NB |
| z3 – UK Manufacturer Electronic Address | www.danfoss.co.uk |
| z4 – EU Manufacturer Name | Danfoss A/S |
| z5 – EU Manufacturer Postal Address | Danfoss A/S, Nordborg, 6430, Denmark |
| z6 – EU Manufacturer Electronic Address | www.danfoss.com |
