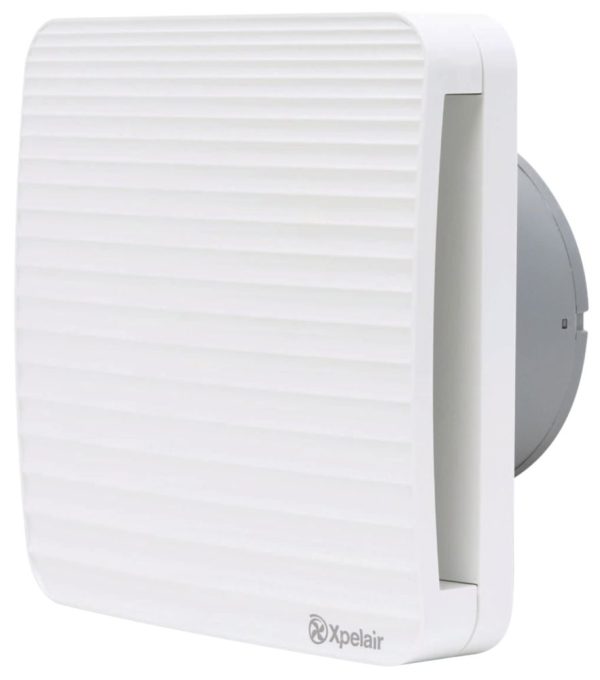

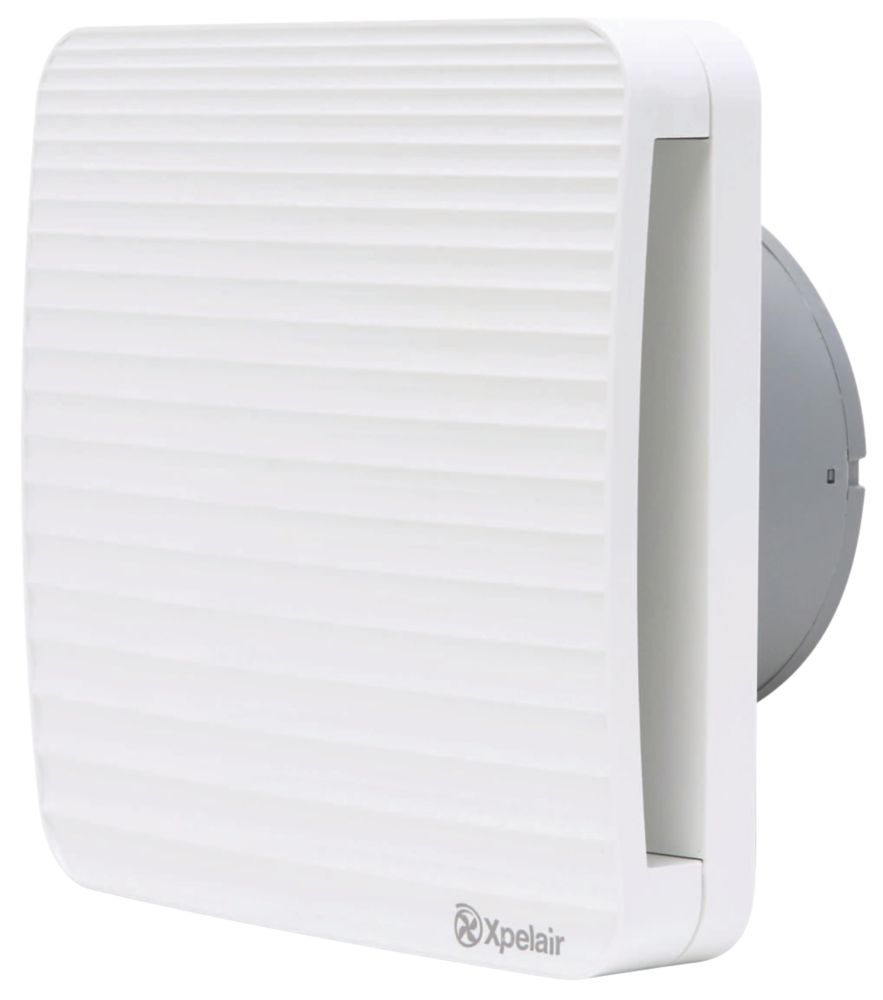

Xpelair XR100T 100mm (4″) Axial Bathroom Extractor Fan with Timer White 220-240V
- Single-Speed
- Noise Level 35dBA at 3m
- Ceiling or Wall-Mounted
- Ducting Not Included
- No Built-In Shutter
- Adjustable Overrun Timer: Max. 25min
- Extraction Rate 83m³/hr
€66.66
Maintenance-free, sealed-for-life motor and removable white baffle cover. Suitable for installation in bathrooms, cloakrooms and utility rooms.
| Brand | Xpelair |
| Building Regulations | Will comply with Building Regulation Part F if installed in accordance with the manufacturer’s instructions and by a competent person. |
| Colour | White |
| Construction Material (Heating) | ABS Plastic |
| Domestic/Commercial Use | Suitable for Domestic Use |
| Ducting Diameter | 100 mm |
| Ducting Included | Ducting Not Included |
| Extraction Band | 76-100 m³/hr |
| Extraction Rate | 83 m³/hr |
| Extractor Fan Control Type | Timer |
| Fan Diameter (Imperial) | 4 “ |
| Fan Diameter (Metric) | 100 mm |
| Fan Operation Type | Mains Wired |
| Fan Speed Settings | Single-Speed |
| Fitting Installation | Ceiling or Wall-Mounted |
| Fixings Supplied | Fixings Supplied |
| IP Rating | IPX4 |
| Installation Zones | Zone 2 |
| Insulation Type | Double-Insulated |
| Manufacturer Guarantee | 2 Year Guarantee |
| Model Name/No | XR100T |
| Noise Level at 3m | 35 dBA |
| Overload Protection | Overload Protection |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Consumption | 10 W |
| Power Voltage Supply | 220-240 V |
| Product Depth | 93 mm |
| Product Height | 160 mm |
| Product Type | Extractor Fan |
| Product Width | 160 mm |
| Projection From Wall | 40 mm |
| Transformer | Transformer Not Required |
