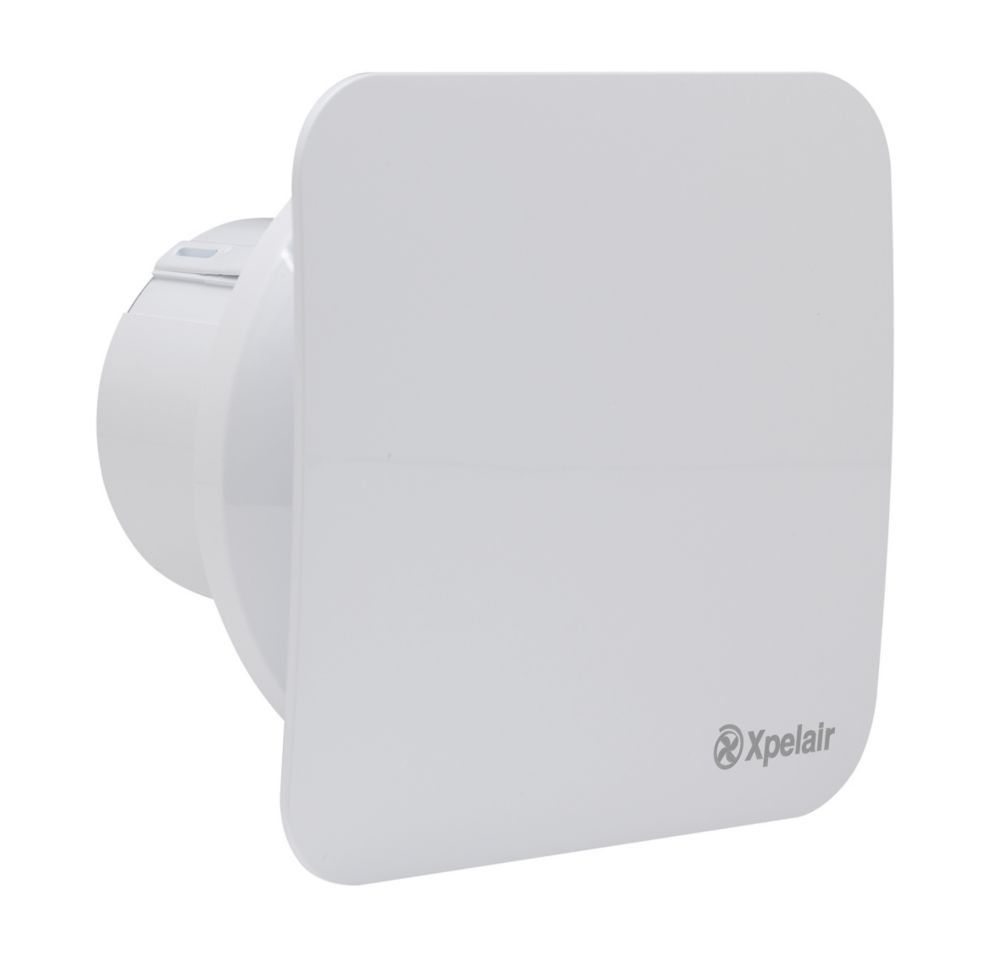

Xpelair LVCV4SR 100mm (4″) Axial Bathroom or Kitchen Extractor Fan with Humidistat & Timer White 220-240V
- Continuous Running
- Noise Level 28dBA at 3m
- Ceiling or Wall-Mounted
- Ducting Not Included
- No Built-In Shutter
- No Overrun Function
- Extraction Rate 18-65m³/hr
- Low Voltage Continuous Extraction
€203.94
Instruction Manual
Humidistat 3-speed SELV extractor fan with Ghost air movement technology, designed to deliver near silent ventilation. Operates in low-noise and efficient trickle ventilation mode. Extraction rate increases in response to the integrated active humidity sensor, or by activation of an external switch connected to fan. Ideal for installations with frequent-use condensation, high-levels of moisture, poor existing ventilation, or difficult mould problems. Easy set up with in-built data logger. Aluminium and ABS plastic construction.
| Brand | Xpelair |
| Building Regulations | Will comply with Building Regulation Parts F and L if installed in accordance with the manufacturer’s instructions and by a competent person. |
| Colour | White |
| Construction Material (Heating) | Aluminium / ABS Plastic |
| Domestic/Commercial Use | Suitable for Domestic & Commercial Use |
| Ducting Diameter | 100 mm |
| Ducting Included | Ducting Not Included |
| Extraction Band | Less Than 75 m³/hr |
| Extraction Rate | 18-65 m³/hr |
| Extractor Fan Control Type | Humidistat & Timer |
| Fan Diameter (Imperial) | 4 “ |
| Fan Diameter (Metric) | 100 mm |
| Fan Operation Type | Mains Wired |
| Fan Speed Settings | Continuous Running |
| Fitting Installation | Ceiling or Wall-Mounted |
| Fixings Supplied | Fixings Supplied |
| IP Rating | IPX5 |
| Installation Zones | Zone 1 |
| Insulation Type | Double-Insulated |
| Manufacturer Guarantee | 2 Year Guarantee |
| Model Name/No | LVCV4SR |
| Noise Level at 3m | 28 dBA |
| Overload Protection | Overload Protection |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Consumption | 2-3.7 W |
| Power Voltage Supply | 220-240 V |
| Product Depth | 131 mm |
| Product Height | 200 mm |
| Product Type | Bathroom or Kitchen Fan |
| Product Width | 200 mm |
| Projection From Wall | 45 mm |
| Transformer | Transformer Supplied |
| z1 – UK Manufacturer Name | Glen Dimplex |
| z2 – UK Manufacturer Postal Address | Glen Dimplex Millbrook House, Grange Drive Hedge End, Southampton, Hampshire, SO30 2DF |
| z3 – UK Manufacturer Electronic Address | customer.services@glendimplex.com |
| z4 – EU Manufacturer Name | Glen Dimplex |
| z5 – EU Manufacturer Postal Address | Old Airport Road, Cloughran, Dublin, K67 VE08, Ireland |
| z6 – EU Manufacturer Electronic Address | customer.services@glendimplex.com |
