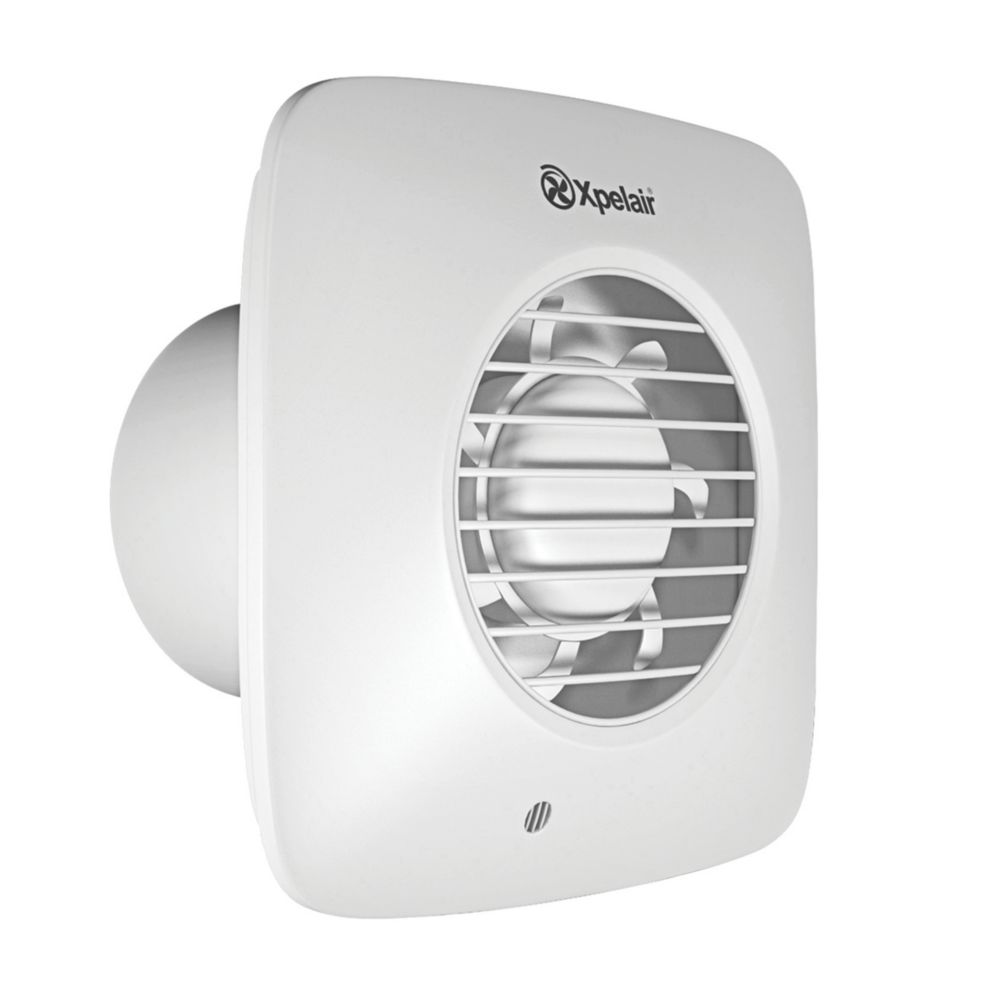

Xpelair DX150HTS 150mm (6″) Axial Bathroom or Kitchen Extractor Fan with Humidistat & Timer White 220-240V
- 2-Speed
- Noise Level 39 – 42dBA at 3m
- Ceiling or Wall-Mounted
- Ducting Not Included
- Backdraft Shutter
- Adjustable Overrun Timer: Max. 30min
- Extraction Rate 214 – 241m³/hr
€147.54
Instruction Manual
Conventional grille-style twist and click fascia. Humidistat twin-speed extractor fan with Ghost air movement technology, designed to deliver near silent ventilation. So Simple installation secures simply to ceilings and panels for the ideal replacement fan, both easy to clean and maintain. Operated by built-in humidity sensor, adjustable from 50-90% RH. Timer function adjustable from 30sec to 30mins. Designed for use in kitchens and utility rooms.
| Brand | Xpelair |
| Building Regulations | Will comply with Building Regulation Part F if installed in accordance with the manufacturer’s instructions and by a competent person. |
| Colour | White |
| Construction Material (Heating) | Aluminium / ABS Plastic |
| Domestic/Commercial Use | Suitable for Domestic Use |
| Ducting Diameter | 150 mm |
| Ducting Included | Ducting Not Included |
| Extraction Band | 201-300 m³/hr |
| Extraction Rate | 214 – 241 m³/hr |
| Extractor Fan Control Type | Humidistat & Timer |
| Fan Diameter (Imperial) | 6 “ |
| Fan Diameter (Metric) | 150 mm |
| Fan Operation Type | Mains Wired |
| Fan Speed Settings | 2-Speed |
| Fitting Installation | Ceiling or Wall-Mounted |
| Fixings Supplied | Fixings Supplied |
| IP Rating | IPX4 |
| Installation Zones | Zone 1 |
| Insulation Type | Double-Insulated |
| Manufacturer Guarantee | 2 Year Guarantee |
| Model Name/No | DX150HTS |
| Noise Level at 3m | 39 – 42 dBA |
| Overload Protection | Overload Protection |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Consumption | 15-22.6 W |
| Power Voltage Supply | 220-240 V |
| Product Depth | 130 mm |
| Product Height | 229 mm |
| Product Type | Kitchen Extractor Fan with Humidstat & Timer |
| Product Width | 229 mm |
| Projection From Wall | 39 mm |
| Transformer | Transformer Not Required |
| z1 – UK Manufacturer Name | Glen Dimplex |
| z2 – UK Manufacturer Postal Address | Glen Dimplex Millbrook House, Grange Drive Hedge End, Southampton, Hampshire, SO30 2DF |
| z3 – UK Manufacturer Electronic Address | customer.services@glendimplex.com |
| z4 – EU Manufacturer Name | Glen Dimplex |
| z5 – EU Manufacturer Postal Address | Old Airport Road, Cloughran, Dublin, K67 VE08, Ireland |
| z6 – EU Manufacturer Electronic Address | customer.services@glendimplex.com |
