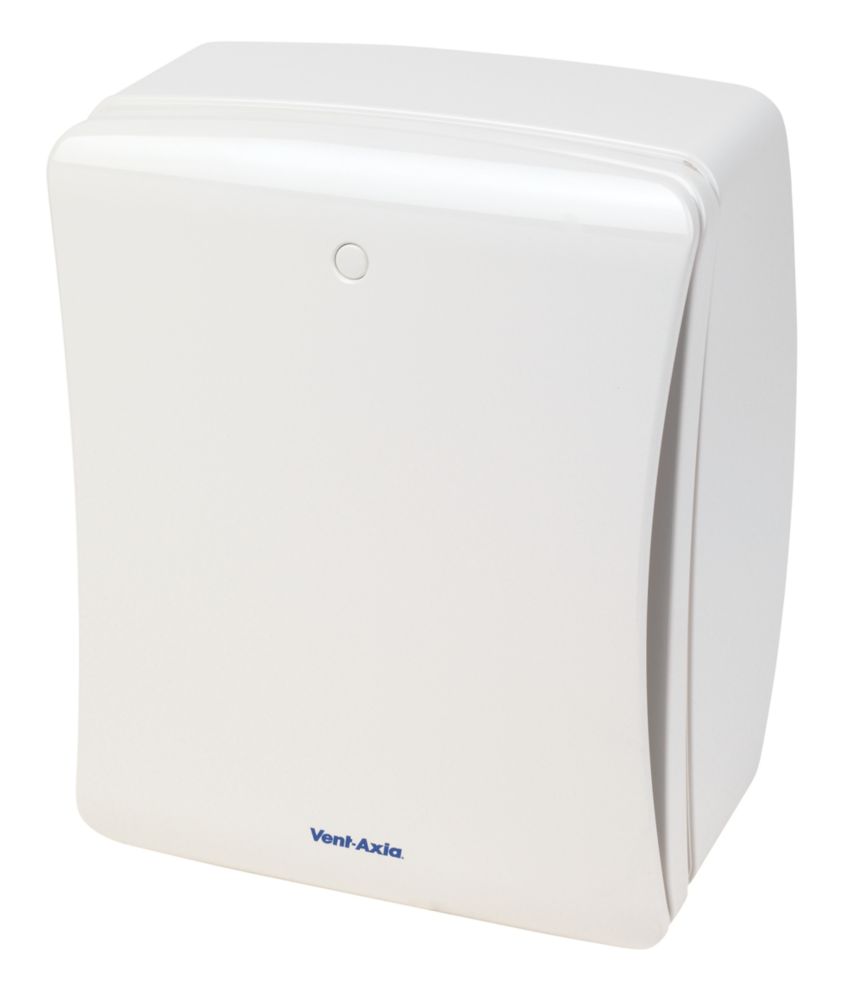

Vent-Axia 427478 100mm (4″) Centrifugal Bathroom Extractor Fan with Timer White 240V
- 3-Speed
- Noise Level 41dBA at 3m
- Ceiling or Wall-Mounted
- Ducting Not Included
- Backdraft Shutter
- Adjustable Overrun Timer: Max. 20min
- Extraction Rate 90m³/hr
€147.30
Instruction Manual
3-speed centrifugal bathroom fan suitable for ducting applications. High performance motor. Suitable for bathrooms without external wall and can be recess or surface fitted. Boost and trickle options for continuous running.
| Brand | Vent-Axia |
| Building Regulations | Will comply with Building Regulation Parts F and L if installed in accordance with the manufacturer’s instructions and by a competent person. |
| Colour | White |
| Construction Material (Heating) | ABS Plastic |
| Domestic/Commercial Use | Suitable for Domestic Use |
| Ducting Diameter | 100 mm |
| Ducting Included | Ducting Not Included |
| Extraction Band | 76-100 m³/hr |
| Extraction Rate | 90 m³/hr |
| Extractor Fan Control Type | Timer |
| Fan Diameter (Imperial) | 4 “ |
| Fan Diameter (Metric) | 100 mm |
| Fan Operation Type | Mains Wired |
| Fan Speed Settings | 3-Speed |
| Fitting Installation | Ceiling or Wall-Mounted |
| Fixings Supplied | Fixings Supplied |
| IP Rating | IPX4 |
| Installation Zones | Zone 2 |
| Insulation Type | Double-Insulated |
| Manufacturer Guarantee | 2 Year Guarantee |
| Model Name/No | 427478 |
| Noise Level at 3m | 41 dBA |
| Overload Protection | Overload Protection |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Consumption | 21 W |
| Power Voltage Supply | 240 V |
| Product Depth | 161 mm |
| Product Height | 261 mm |
| Product Type | Centrifugal Bathroom Extractor Fan with Timer |
| Product Width | 221 mm |
| Projection From Wall | 106 mm |
| Transformer | Transformer Not Required |
