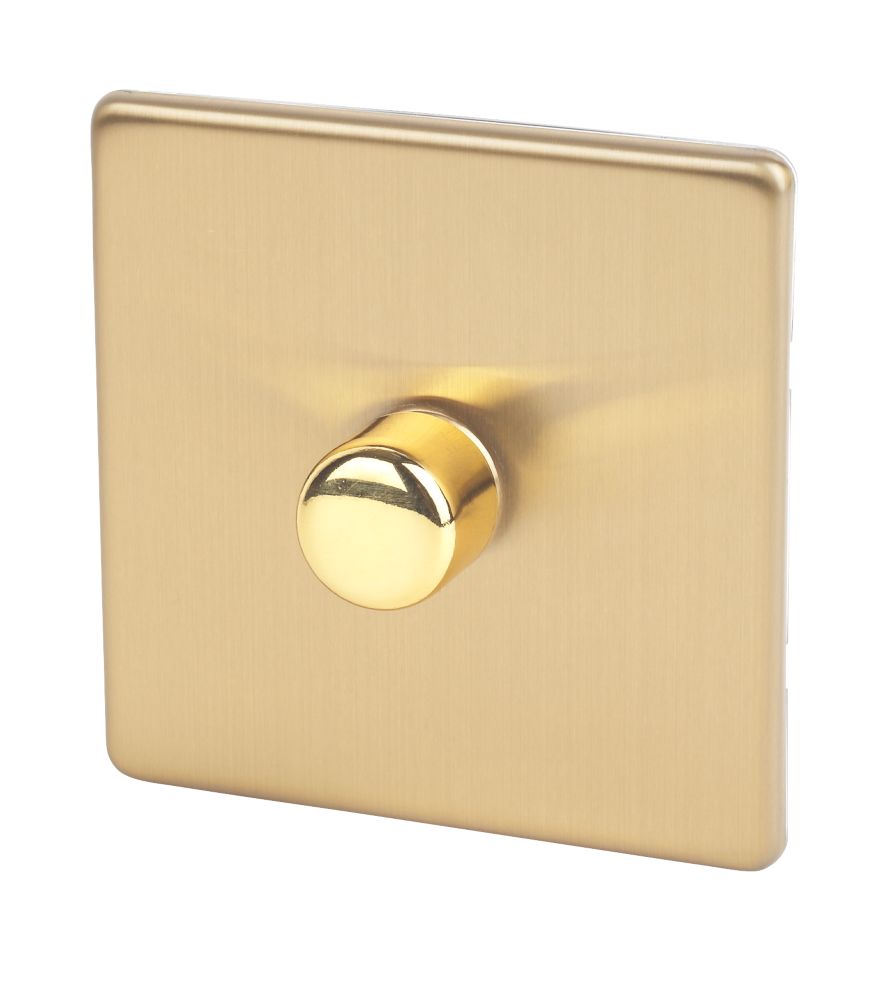

Varilight V-Pro 1-Gang 2-Way LED Dimmer Switch Brushed Brass

  • Leading Edge or Trailing Edge Option
  • Raised Bevelled Profile
  • Screwless Faceplate
  • Requires 35mm Back Box
  • Captive Terminal Screws
  • Suitable for Mains & Low Voltage Lighting
  • Overload Protection
  • Interchangeable Cover
  • Concealed Fixings
Varilight V-Pro 1-Gang 2-Way LED Dimmer Switch Brushed Brass

€28.26




Instruction Manual

Low profile, screwless faceplate with polished brass controls for a sleek, contemporary style. Controlled by a micro-processor, offering sophisticated overload protection and a choice of dimming modes including a programmable minimum load level to optimise the dimming range of a particular lighting load.

Advisory Notice Not suitable for non-dimmable fluorescent bulbs or tubes, wirewound or torodial transformers, fans or motors.
Brand Varilight
Dimmer Switch Operation Rotary
Fixings Supplied Fixings Supplied
Indicator Type Without Indicator
Insert Colour Without Inserts
Manufacturer Guarantee 2 Year Guarantee
Max. Dimmable Load (Fluorescent) Not Compatible
Max. Dimmable Load (Halogen) 300 W
Max. Dimmable Load (Incandescent) 300 W
Max. Dimmable Load LED) 120 W
Min. Back Box Depth Required 35 mm
Min. Dimmable Load (Fluorescent) Not Compatible
Min. Dimmable Load (Halogen) 40 W
Min. Dimmable Load (Incandescent) 0 W
Min. Dimmable Load (LED) 0 W
Model Name V-Pro
Model No JDBP401S
No. of Earth Terminals 1
No. of Ways 2 Way
Number of Gangs 1 Gang
On/Off Switch Operation Push
Overload Protection Overload Protection
Pack Size 1
Parent Colour Brass
Pieces in Pack/Case 1
Power Voltage Supply 220 / 250 V
Product Type Dimmer Switch
Screwed/Screwless Screwless
Smart Compatibility Not Smart
Suitable for Dimming LEDs LED
Switch Operation Dimmer
Switch Operation Colour Polished Brass
Switch Product Type Light
Switches & Sockets Finish Brushed
Switches & Sockets Product Type Dimmer Switch
Switches & Sockets Profile Type Raised Bevelled
Terminal Capacity Terminals accept up to 3 x 1.5mm² cables
Terminal Description Captive Terminal Screws
Waveform Leading Edge or Trailing Edge Option
