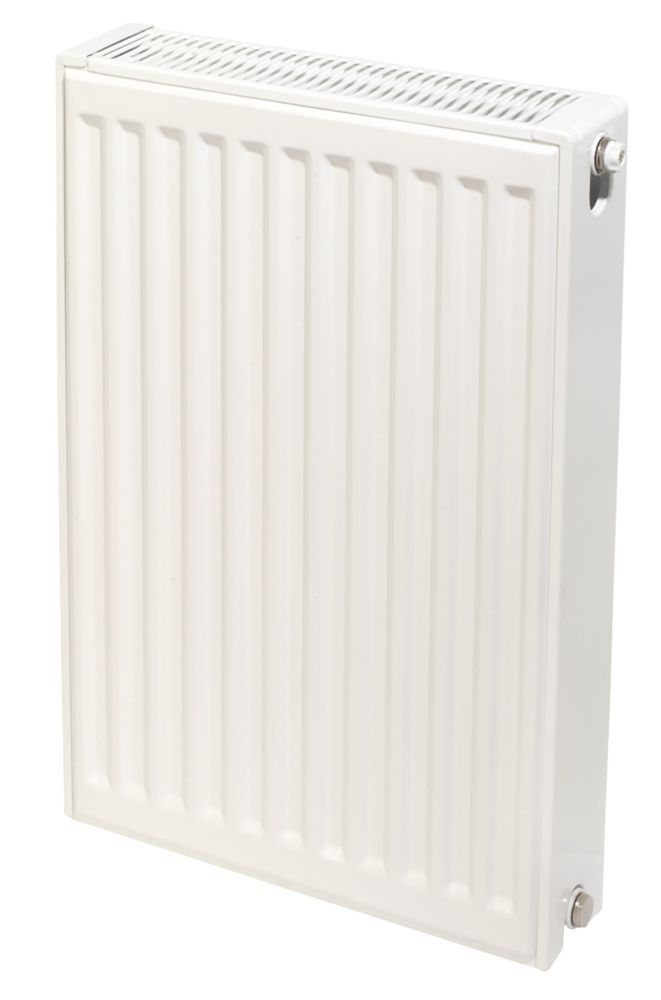

Stelrad 600mm x 400mm 2283BTU White Type 22 Convector Radiator
- Double-Panel
- 2283BTU 669W
- Brackets, Plug & Vent Included
- 2 Year Guarantee
- Factory Fitted Top Grilles & Side Panels
- Finished to RAL 9016
- Horizontally-Mounted
- Suitable for Domestic & Commercial Use
€145.14
Instruction Manual
Classic design.
| BTU | 2283 BTU |
| BTU Band | 2001-3000 |
| Brand | Stelrad |
| CALC – No. of Panels | Double Panel |
| Connection Size | 1/2 “ |
| Delta T | Delta T50°C |
| Finish Code | Finished to RAL 9016 |
| Manufacturer Guarantee | 2 Year Guarantee |
| Max. Working Pressure | 10 bar |
| Max. Working Temperature | 95 °C |
| Model Name | Accord Compact |
| Mounting Orientation | Horizontally-Mounted |
| No. of Panels | Double-Panel |
| Orientation | Vertical |
| Pack Size | 1 |
| Parent Colour | White |
| Pieces in Pack/Case | 1 |
| Power Output (Watts/Kw) | 669 W |
| Product Height | 600 mm |
| Product Type | Radiator |
| Product Width | 400 mm |
| Projection from Wall (Std Bracket) | 124-135 mm |
| Radiator Accessories Included | Brackets, Plug & Vent Included |
| Radiator Coating & Finish | Powder-Coated |
| Radiator Colour | White |
| Radiator Height Band | 600-799mm |
| Radiator Product Type | Convector |
| Radiator Type Number | Type 22 |
| Radiator Water Content | 2.64 Ltr |
| Radiator Width Band | 301-500mm |
| Shape Orientation | Radiator is taller than it is wide |
| Smart Compatibility | Not Smart |
| Suitable System | Suitable for Domestic & Commercial Use |
| Test Pressure | 13 bar |
| Total Product Weight | 14.49 kg |
| Wall to Centre (Standard Bracket) | 73 mm |
