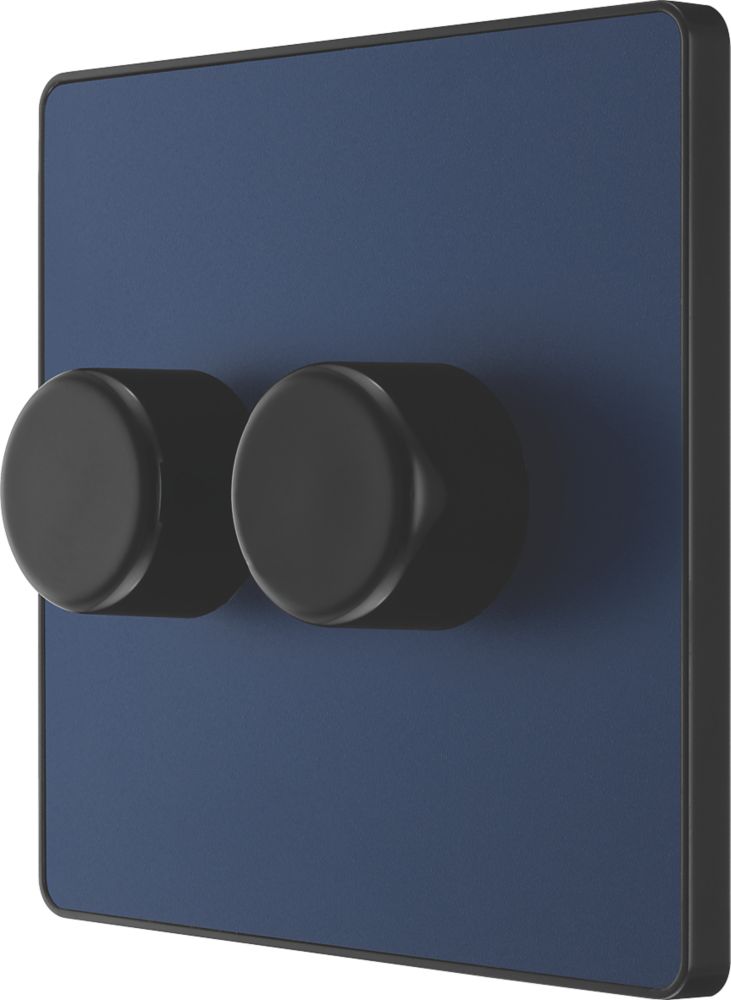

British General Evolve 2-Gang 2-Way LED Dimmer Switch Blue with Black Inserts
- Trailing Edge
- Raised Slim Profile
- Screwless Faceplate
- Requires 25mm Back Box
- Backed-Out Captive Terminal Screws
- Suitable for Mains & Low Voltage Lighting
- Overload Protection
€39.66
Evolve, trailing edge, double dimmer switch that controls light levels and sets mood. Intelligent electronic circuit monitors connected load and provides a soft-start with protection against thermal, current and voltage overload. Suitable for dimming LED, dimmable CFLs and traditional lighting. Soft-start brings the lights to a set level in around 1 second and extends lamp life. Silent operation means no noise when dimming, while support for low wattage lamps eliminates flicker. Low profile screwless flat plate that clips on and off. Ideal for modern interiors.
| Brand | British General |
| Dimmer Switch Operation | Rotary |
| Fixings Supplied | Fixings Supplied |
| Indicator Type | Without Indicator |
| Insert Colour | Black |
| Manufacturer Guarantee | 2 Year Guarantee |
| Max. Dimmable Load (Fluorescent) | 100 W |
| Max. Dimmable Load (Halogen) | 200 W |
| Max. Dimmable Load (Incandescent) | 200 W |
| Max. Dimmable Load LED) | 100 W |
| Min. Back Box Depth Required | 25 mm |
| Min. Dimmable Load (Fluorescent) | 5 W |
| Min. Dimmable Load (Halogen) | 20 W |
| Min. Dimmable Load (Incandescent) | 5 W |
| Min. Dimmable Load (LED) | 5 W |
| Model Name | Evolve |
| Model No | PCDDB82B |
| No. of Earth Terminals | 1 |
| No. of Ways | 2 Way |
| Number of Gangs | 2 Gang |
| On/Off Switch Operation | Push |
| Overload Protection | Overload Protection |
| Pack Size | 1 |
| Parent Colour | Blue |
| Pieces in Pack/Case | 1 |
| Power Voltage Supply | 250 V |
| Product Type | Dimmer Switch |
| Screwed/Screwless | Screwless |
| Smart Compatibility | Not Smart |
| Suitable for Dimming LEDs | LED |
| Switch Operation | Rotary |
| Switch Operation Colour | Black |
| Switch Product Type | Light |
| Switches & Sockets Finish | Matt |
| Switches & Sockets Product Type | Dimmer Switch |
| Switches & Sockets Profile Type | Raised Slim |
| Terminal Capacity | Terminals accept up to 2.5mm² cable |
| Terminal Description | Backed-Out Captive Terminal Screws |
| Waveform | Trailing Edge |
