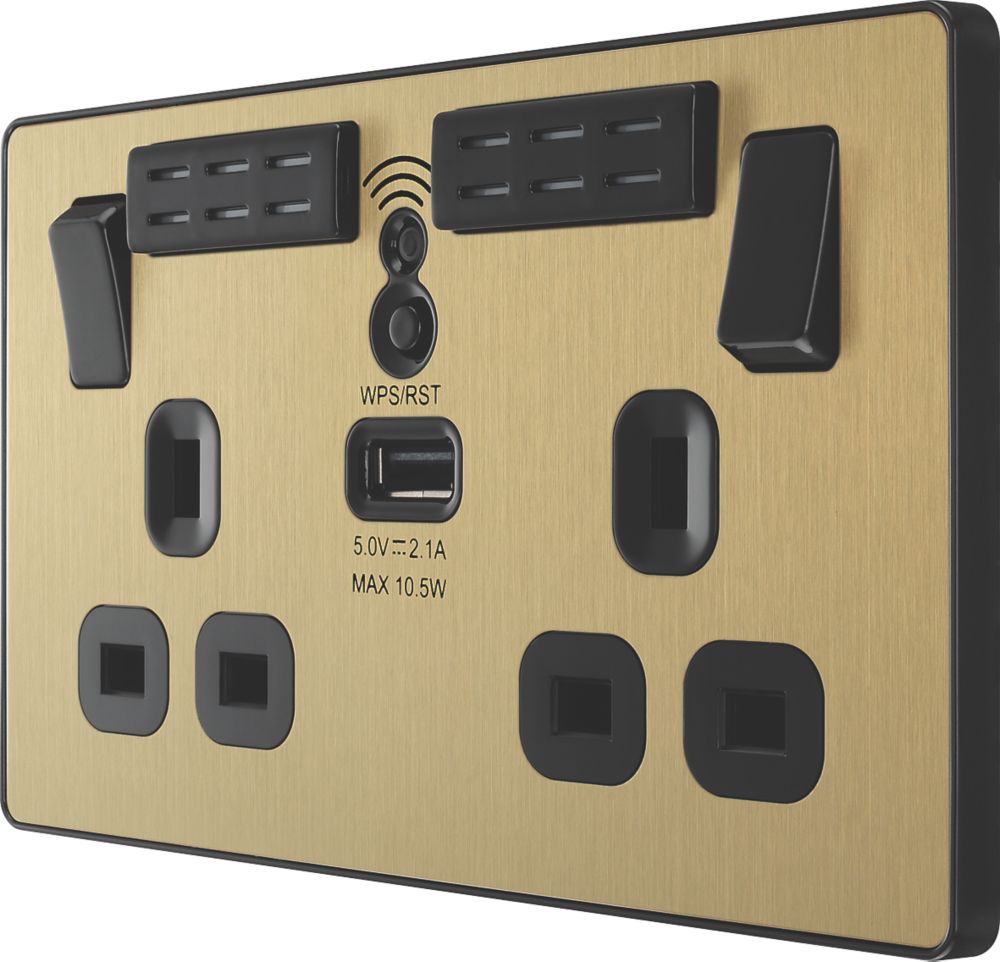

British General Evolve 13A 2-Gang SP Switched Wi-Fi Extender Socket + 2.1A 10.5W 1-Outlet Type A USB Charger Satin Brass with Black Inserts
- Maximum Data Transfer Rate: 300Mbps (N300)
- Maximum Wireless Range: 15m
- Frequency Band: 2.4GHz
- Raised Slim Profile
- Screwless Faceplate
- Requires 35mm Back Box
- Colour-Coded Angled In-Line Terminals with Captive Screws
- LED Indicator
€69.54
Double power socket with integrated WiFi extender. Eliminates dead spots and works with all wireless broadband routers to expand WiFi coverage. Easy to install with one-touch WPS. Includes USB charging port, leaving sockets free for use. Ideal for retro-fit to an existing 35mm back box. Features low profile, screwless flat plate that clips on and off, making it ideal for modern interiors.
| Amp Rating | 13 A |
| Brand | British General |
| Electrical Socket Installation | Wall |
| Electrical Socket Product Type | Plug |
| Fixings Supplied | Fixings Supplied |
| Indicator Type | LED Indicator |
| Insert Colour | Black |
| Link Rate Class | N300 |
| Manufacturer Guarantee | 2 Year Guarantee |
| Max. Link Rate (Mbps) | 300 Mbps |
| Min. Back Box Depth Required | 35 mm |
| Model Name | Evolve |
| Model No | PCDSB22UWRB |
| Network Standards | 2T2R 2.4GHz IEEE 802.11n/g/b |
| No. of Earth Terminals | 2 |
| No. of USB Outlets | 1 |
| Number of Gangs | 2 Gang |
| Number of Poles | Single Pole |
| Pack Size | 1 |
| Parent Colour | Brass |
| Pieces in Pack/Case | 1 |
| Power Voltage Supply | 250 V |
| Product Type | Wi-Fi Extender Socket |
| Radio Frequency Band | 2.4GHz |
| Screwed/Screwless | Screwless |
| Switch Operation Colour | Black |
| Switch Position | Outboard |
| Switched/Unswitched | Switched |
| Switches & Sockets Finish | Satin |
| Switches & Sockets Product Type | Wi-Fi Extender Socket |
| Switches & Sockets Profile Type | Raised Slim |
| Terminal Capacity | Terminals accept up to 3 x 2.5mm² cables |
| Terminal Description | Colour-Coded Angled In-Line Terminals with Captive Screws |
| USB Max Current | 2.1 A |
| USB Max Wattage | 10.5 W |
| USB Output | 2.1A per Port |
| USB Type | Type A |
| USB Voltage | 5 V |
| Wireless Range (Max.) | 15m |
| Wireless Range Restrictions | Electronic interference from appliances or physical obstruction, such as brick walls, metal frames and floors, can reduce the wireless range. A signal weakens every time it encounters an obstruction. |
| With RCD | Without RCD |
| With USB Ports | USB |
| With WiFi Extender | WiFi Extender |
| z1 – UK Manufacturer Name | Luceco UK Ltd |
| z2 – UK Manufacturer Postal Address | Luceco Distribution Centre, Stafford Park 1, Shropshire, TF3 3BD |
| z3 – UK Manufacturer Electronic Address | technical.support@luceco.com |
| z4 – EU Manufacturer Name | Luceco SE |
| z5 – EU Manufacturer Postal Address | Luceco SE Distribution Centre, C/ Bobinadora 1-5, Mataró, Barcelona, 8302, Spain |
| z6 – EU Manufacturer Electronic Address | es_ordersretail@luceco.es |
